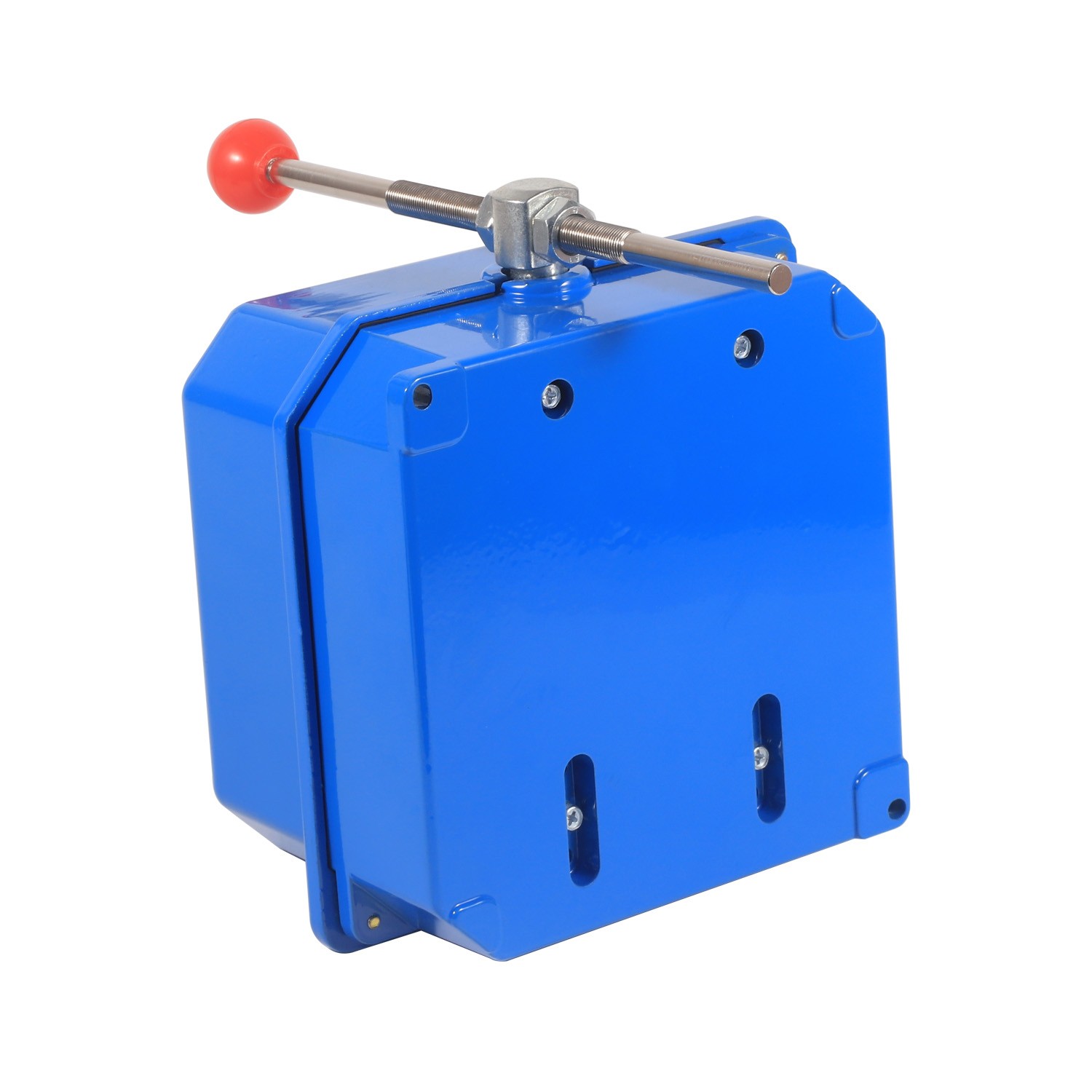

JK18-125 ACリミットスイッチ

JK18-125 ACリミットスイッチは、産業用自動化システム用に特異的に設計された機械的位置制御デバイスです。そのコア機能は、機械的移動部品の移動制限を正確にテストすることにより、デバイスの自動電力オフのオフの保護または実行方向の変更を実現することです。制限スイッチは機能を失い、リミットストップブロックはジョイスティックを押すために使用されるため、移動する接点とスイッチ内の3つのペアの静的接点が分離され、エレベーターの総電源が切断され、エレベーターのターミナルリミット保護が実現されます。

お問い合わせを送信

製品説明

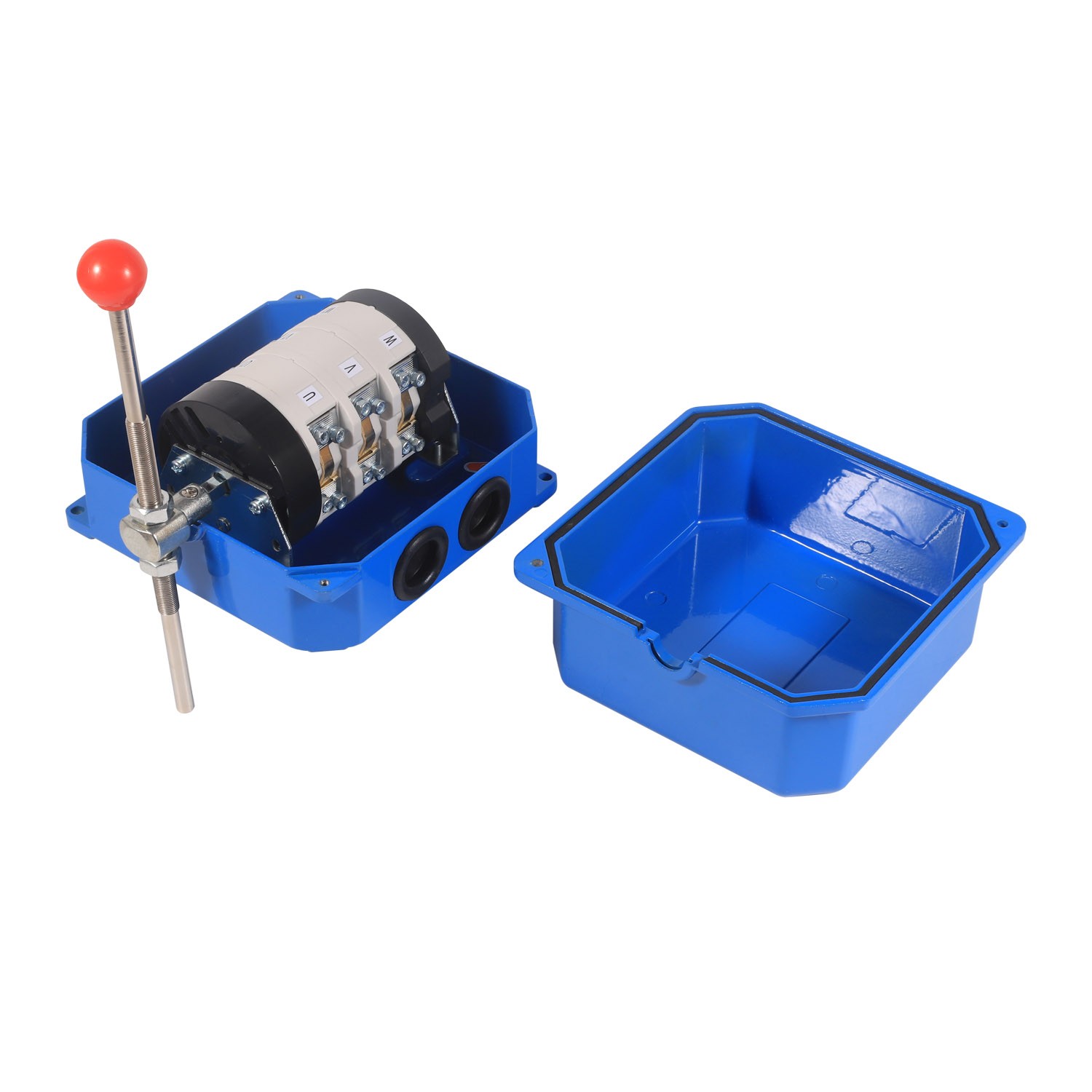

The switch uses a highly sensitive silver alloy contact structure, with excellent arc and wear resistance. Double break contact design with quick action mechanism, can quickly complete the breaking action, to ensure that in the mechanical overdrive fast cut off the circuit. The built-in powerful reset spring system ensures that the switch can maintain a stable contact pressure under frequent start-stop conditions, especially for cranes, machine tools, automated production lines and other industrial scenarios requiring accurate stroke control.

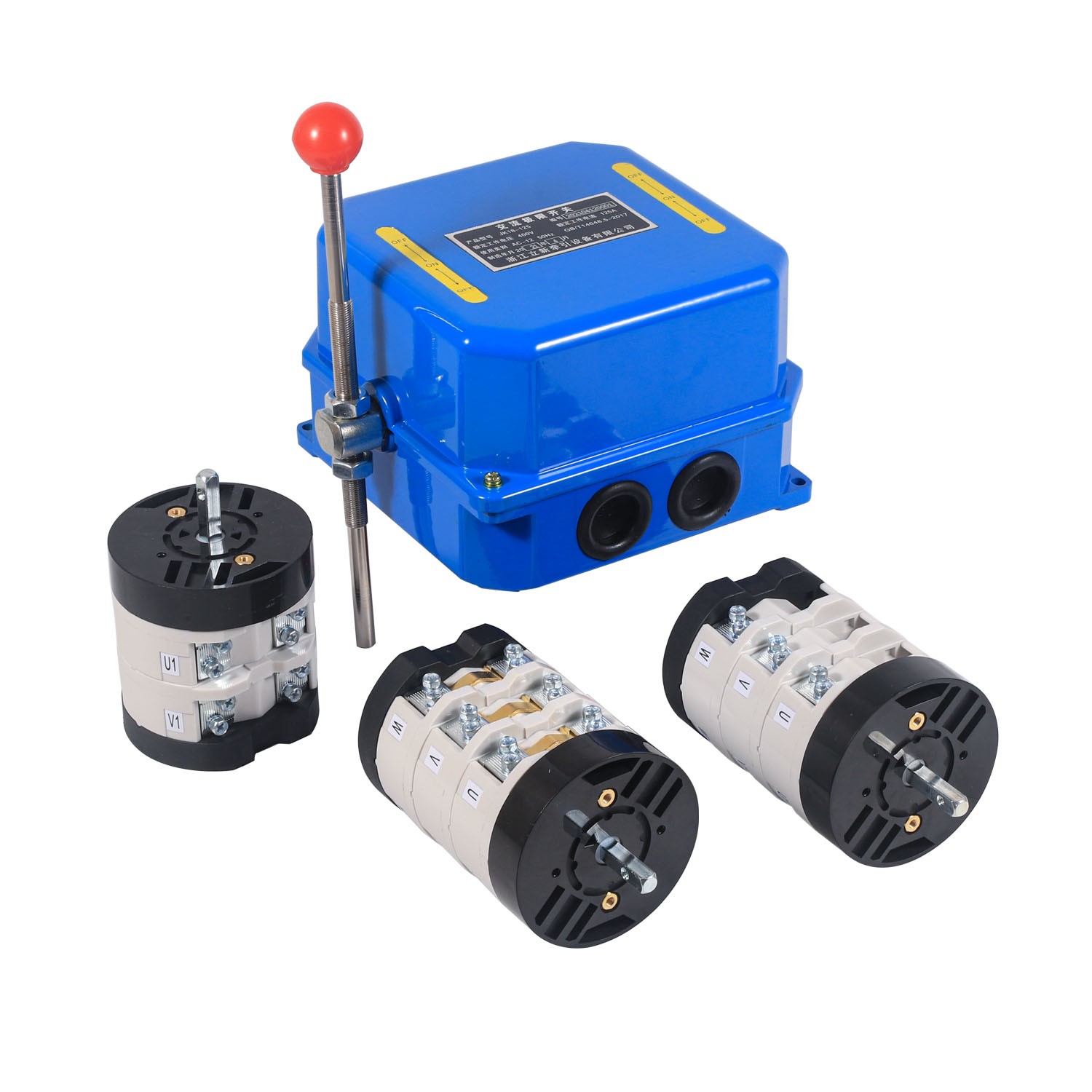

As a key component of the electrical mechanical interlock protection system, the JK18-125 achieves multi-functional adaptability through modular structural design. The swing lever drive mechanism can be configured with different actuating parts such as roller and fork arm, which supports horizontal and vertical multi-directional installation. The built-in bidirectional action mechanism can not only realize the free combination of normally open and normally closed contacts, but also set the bidirectional stroke protection by adjusting the position of the ram.

Lixin Speed Shift Cam Operated Limit Switch offers several advantages in industrial applications:

Precision Speed Control: Enables precise control over the speed of machinery or equipment, allowing for smooth adjustments according to operational requirements.

Enhanced Safety: Incorporates safety features to establish speed limits and prevent equipment from exceeding predetermined thresholds, reducing the risk of accidents or damage.

Reliable Performance: Engineered for durability and reliability, ensuring consistent operation even in challenging industrial environments, thus minimizing downtime.

Versatility: Suitable for a wide range of applications requiring speed control, including conveyor systems, motor-driven equipment, and manufacturing processes.

Flexibility: Offers flexibility in speed adjustments, allowing operators to adapt quickly to changing production needs or operational conditions.

Ease of Installation: Designed for easy installation and integration into existing systems, reducing setup time and enhancing operational efficiency.

Cost-Effectiveness: Helps optimize energy usage by controlling speed efficiently, leading to potential cost savings in electricity consumption and maintenance.

Lixin Speed Shift Cam Operated Limit Switch Parameter (Specification)

Rated working voltage Ue V	AC380V(440V)	Electrical life	5000 times
Rated operating current le	125A	Mechanical life	500000 times
Rated insulation voltage	500V	action lever force	50N
Maximum number of control loops	3	Contact breaking action lever angle	60°
